Keypad Panel Led Membrane Switch

Ask Lasest Price
Brand Name :	Haiwen
Model Number :	HW-2022052501
Certification :	ISO9001
Supply Ability :	100000 Piece/Pieces per Month
Price :	$1.00/pieces 10-999 pieces

Add to Cart

Product Details
Company Profile

Keypad Panel Led Membrane Switch

Custom Led Membrane Switch With Led Backlight Membrane Switch Keypad Panel

Product Description

Overlay Material	PET, PC, EBG180, EGA180, Glass, Acrylic
Artwork Format	CorelDraw, AI, CAD, CDR, PDF
Color	Pantone and RALcolor matching system
Button	Embossed/Flat/Metal/Silicone/Rubber
Keys Options	Tactile: metal domes or poly domes
Keys Options		Non-tactile: flat button, printed silver spot on the circuit
Connector Tail	Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch
Connector Tail		Female connector with 2.54MM pitch
Circuitry option	Silver printed conductive inks, FFC, FPC, PCB
Printing	Screen printing, Semi-Auto matic printing, Automatic Printing
Window	Clear or transparent, translucent, red/black/white etc transparent window
Surface	Glossy surface or matte surface
Rear Adhesive	3M467,3M468, 3M9080, 3M9495, 3M7959,3M9471, 3M300VHB, etc...
Certificate	ISO9001,RoHS,CE,SGS

Technical Paramenters

Electrical Properties
Operating Voltage	≤ 50VDC	Substrate Voltage	2kDVC
Working Current	≤ 100mA	Spring Time	≤ 6ms
Contact Resistance	0.5 ~ 5Ω	Loop Resistance	60Ω
Insulation Resistance	≥ 100MΩ (100VDC)	Insulation Ink Voltage	100VDC
Mechanical Properties
Reliability, Service life			> 1 million times







Closed Displacement			0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm (touch-type)
Health Standard For Power			280g Power
Silver Migration			In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC
Silver Online No Oxidation, No Impurities
Silver Width			≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4 width
Pin Spacing Standard			1.00mm
Lead Aanti-Curvature			10mm steel rod line pressure roller 80 constantly.
Environmental Performance
Operating Temperature			-40 ℃ ~ +80 ℃
Storage Temperature			-40 ℃ ~ +85 ℃ temperature of 95% ± 5%
Atmospheric Pressure			86 ~ 106KPa
Print Index
Print Size Deviation			± 0.15mm, clear code looks bad ≤ 0.1mm edges
Chromatic Deviation			± 0.11mm/100mm, insulated cover all the Silver Line Ink

Application

Electronic Communication

Electronic Measurement

Industrial Control

Medical Equipment

Automotive Industry

Household

Company Introduction

HaiWen Membrane Switch Limited.

Our company established in June 2009 and specialized in manufacturing and designing membrane switches for years. Our mainly
products category are membrane switches, membrane panels, PC,PVC,PET and aluminum plates, screens, acrylic panels, etc.

HaiWen people have been sticking to the philosophy of “Market Orientation, Continuous Improvement, Sincere Service, Perfection
Pursuit”. In the attitude of “Pragmatic & Honest”, we strive to do every work well and provide customer with high quality products
and perfect service.

Our company possesses advanced production equipment, skilled management personnel and well-trained workers. Every production process is in compliance with the standards of IS09001 strictly, we established a complete quality management system, to ensure strictness and close linking from raw material procurement to delivery. We introduced advanced computer testing equipment to ensure the quality of our product qualified .

Through years of development, our company has over 200 employees in management, selling, engineering and production department and a plant area that over 1,000 square meters. Our products sell well in America, Canada, the United Kingdom, France, Germany, Italy, Australia, Japan, Singapore, etc. HaiWen people know that only by quality products and perfect service can we win customer's trust and remain invincible in the market competitive.we believe that long term cooperation comes our good quality and perfect service. We promise that take carefully attitude to welcome all of our customer .So do not worry about the credibility ,we want to say believe in us please.

We always adhere to the service tenet of “Quality Assurance, Timely Delivery, Reasonable Price, Considerate Service”. We believe that by the efforts and hard work of our staff, we are bond to create more brilliant in the future.sincerely hope to cooperate with all customers for the bright future!

Welcome to contact us!

Certifications

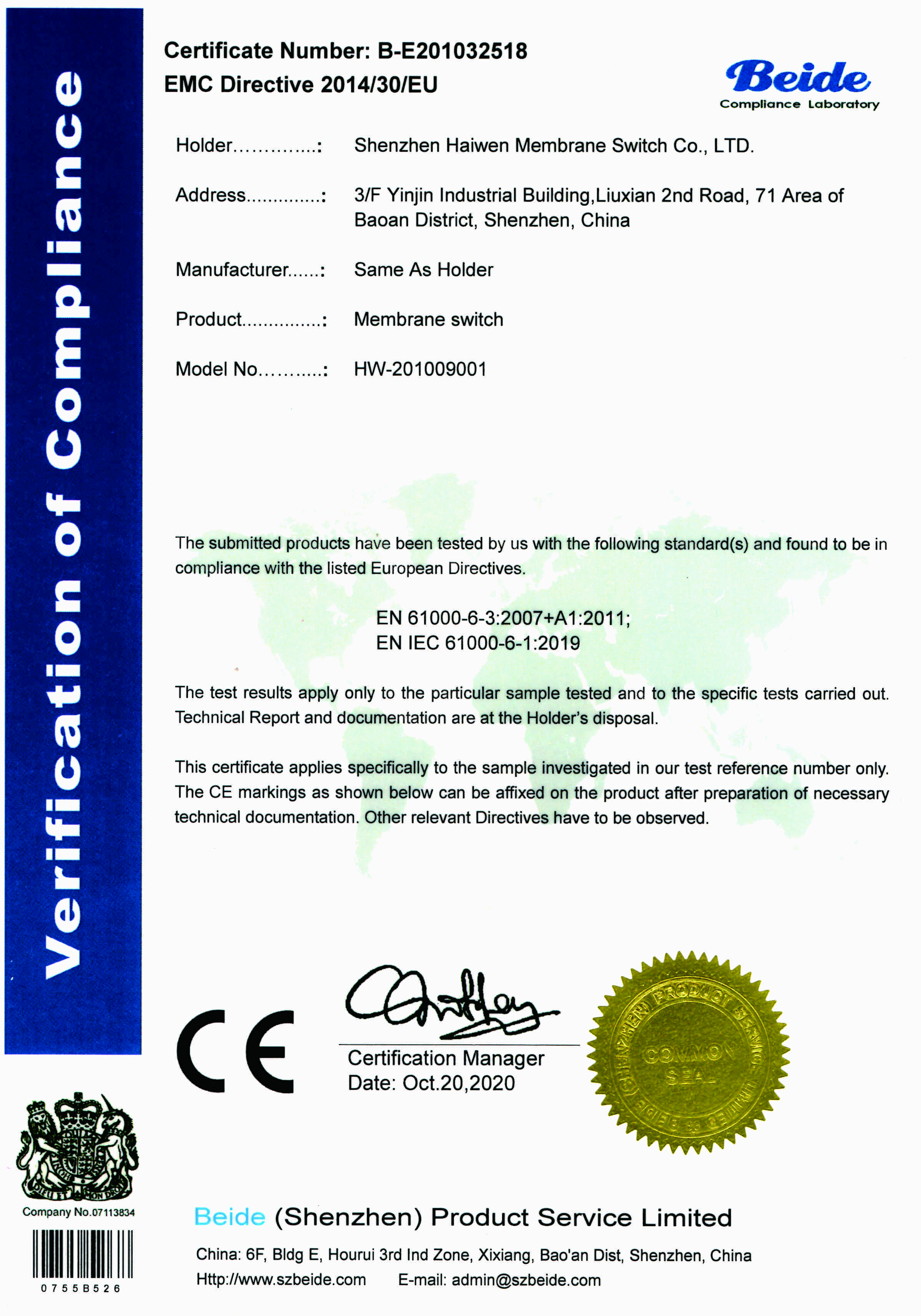

CE ROHS ISO9001 TUV

Packing&Shipping

Packaging:

First put in a polybag per 50 pcs usually, and protected by foam in export carton.

According to the clients' requirements for special orders.

Shipping:
By Air, by Sea, Express UPS,FedEx,DHL, etc.

FAQ

Q1. What information will I have to provide for price?

A:To offer the exact price, we hope customers could inform us the material, specification as thickness, size, with adhesive or not, how many colors for printings, contact details, quantity required, Size and Shape with artwork files.

Q2. What is your terms of packing?
A:Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q3. What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q4. How about your delivery time?
A: After the engineering drawing is confirmed, the sample will be completed in 5 days, and after the sample is confirmed, the mass goods will be completed in 10 days.The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?

1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
